Clear low viscosity epoxy resin is a type of crystal clear epoxy resin system that cures at room temperature or moderate temperatures. It possesses a low viscosity, good leveling properties, and excellent defoaming performance. The curing process occurs at a moderate speed, resulting in cured material with remarkable transparency, high hardness, smooth surface, brightness, absence of bubbles, and strong adhesion. Additionally, the cured material exhibits good resistance to solvents, impact, and yellowing.
Application
Surface coating and drop coating of various metal nameplates, badges, seals, buttons, magnetic buckles, circuit boards, crafts, and other products.
Surface encapsulation of other hard products.
It is not suitable for drop coating on surfaces of elastic or soft products.
Technical Parameters
Liquid Properties
Item
Stand
Part A
Part B
Appearance
Visual Inspection
Clear liquid
Clear liquid
Viscosity (cps,25℃)
GB/T 10247-2008
4000~5000
200~300
Gravity (g/cm3)
GB/T 15223-1994
1.1
0.98
Mix Ratio
Weight
A:B=3:1
Mixed System Viscosity (cps,25℃)
GB/T 10247-2008
1500~2500
Useable Life (25℃)
GB/T 10247-2008
60min(100g)
Gel Time (25℃)
GB/T 10247-2008
6~8 hours
Cure Time (25℃)
GB/T 10247-2008
12-16 hours or 60-80℃/1.5-2 hours
Cured System
Item
Stand
Part A
Part B
Appearance
Visual Inspection
Clear rigid material
Hardness (Shore D,24hr)
GB/T 531-2008
70~80
Tensile Strength (kg/cm2)
GB/T 6328-1999
12~13
Compressive Strength (kg/cm)
GB/T 17517-1998
20~22
Bending Strength(kg/cm)
-
14~15
Thermal Deformation Temperature (℃)
-
90~105
Water Absorption (25℃，24hr)
-
< 0.01%
Temperature Range (℃)
GBT 20028-2005
-30~130
Shrinkage (%)
GB/T 15585-1995
0.35~0.55
Packaging:

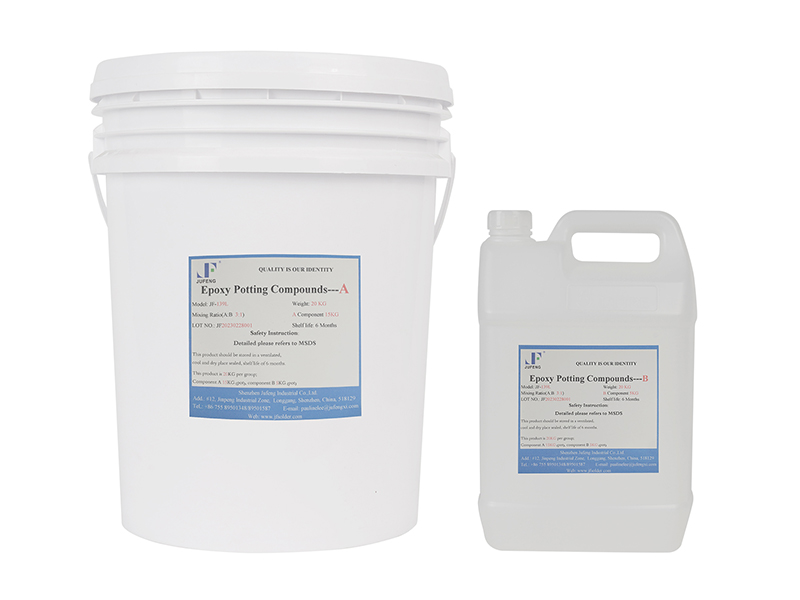

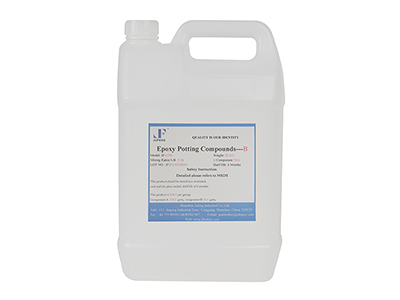

The packaging specification is 20kg per set, which includes 15kg (in barrel) of component A and 5kg (in pot) of component B.
